Blue Aura B1 Home Audio System
Blue Aura B1 Home Audio System
Turntable, amplifier and speakers
We have combined three of our products to be able to offer customers a complete audio package.

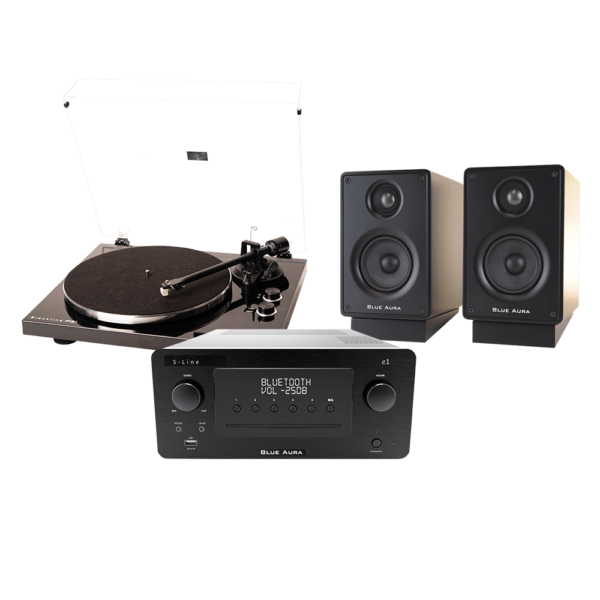

The B1 Home Audio System comprises the Blue 1 Hi-Fi unit, PG2 precision turntable and PS32 loudspeakers, all sonically and aesthetically matched to create an elegant home entertainment system.
- Blue 1 – DAB+/CD Player/FM Radio/Bluetooth connectivity/USB port for stored music files
- PG2 – Precision turntable
- PS32 bookshelf loudspeakers
- All connecting cables
What's in the box?
Blue 1 midi Hi-Fi unit, PG2 turntable, PS32 loudspeakers.
Design
The Blue 1 hi-fi unit is the hub of the system and will connect by cable or Bluetooth to the PG2 Turntable. Using the Bluetooth connection allows more flexibility with positioning your equipment and frees up inputs on Blue 1.
Read more about Blue 1 here
The PG1 turntable offers a pure analogue listening experience producing every detail with clarity and as the artist intended.
Read more about PG2 here
ps32 loudspeakers are a two way, bass-reflex design loudspeaker with a bass reflex port situated on the back of the cabinet. ps32 delivers a balanced sound with uncompromising neutrality.
Read more about ps32 here
Specifications: Blue1/PG2 Turntable/PS32 Loudspeakers - Black
Blue 1
DAB/DAB+
| Frequency Range | 174.928 – 239.200 MHz |
| Sensitivity | -95DBM |
FM Tuner
| Frequency Range | 87.5 – 108 MHz |
| Sensitivity | 6 dBu (S/N=30dB) |
CD Player
| Playable Formats | MP3,WMA,MPEG 1/2/2.5 Layer 2/3 |
USB
| Playable Formats | MP3,WMA,MPEG 1/2/2.5 Layer 2/3 |
Amplifier
| Power output | Rated power: 50W x 2@8Ω 1% THD 1KHz |
| Peak power | 60W x 2@8Ω 10% THD 1 KHz |
| Frequency response | CD/AUX/Line: 20Hz – 20KHz |
| Signal to noise ratio | CD/AUX/Line: 85dB |
| Input sensitivity/impedance | AUX/Line in : 320 mV, 47K |
| Electricity consumption | MAX 120W |
Digital Inputs
| S/PDIF co-axial/ TosLink | Supported sampling frequencies: 8 – 192 KHz |
| Supported Bit depths | 16-24 bit |
| Bluetooth operating frequency | 2402-2480 MHz BT Version 5.0 |
| Maximum emitted power | (EN62479): 1.73- 2.02dBm |
Audio Outputs Sub-out, 2 x AUX,REC out, Headphones
Product Weight: 6.4Kg
Dimensions: 275 x 120 x 317mm
Colour: Black
PG2
| Nominal Speeds | 33 1/3 & 45RPM |
| Speed Variance | ±1.5% |
| Wow and Flutter | ≤0.15% |
| Signal to Noise | 55dB |
| Downforce Range | 2.5-6.0g |
| Effective Tonearm Length | 8.6” (218.5mm) |
| Overhang | 0.73in |
| Power Consumption | 5W (Max.) |
| Outboard Power Supply | 12V/ 500mA AC-DC |
| Dimensions (W x H x D) | 420 x 360 x 125mm |
| Net weight | 4.8kgs |
| Inputs | RCA/Bluetooth 5.0 |
| Cartridge Type | Custom made |
| Cartridge Input | Moving Magnet |
| Arm Type | Custom made |
PS32
High-Frequency Unit
3/4″ Soft Dome
Low-Frequency Unit
3.5″ Paper Cone
Frequency Range
55-20000Hz
Crossover Frequency
12d/B/Octave @ 3.0KHz
Max RMS Power
30 watts per channel
Dimensions
H: 182mm W: 120mm D: 160mm
Weight
3.0Kg each
| High-Frequency Unit | 3/4″ Soft Dome |
| Low-Frequency Unit | 3.5″ Paper Cone |
| Frequency Range | 55-20000Hz |
| Crossover Frequency | 12d/B/Octave @ 3.0KHz |
| Max RMS Power | 30 watts per channel |
| Dimensions | H: 182mm W: 120mm D: 160mm |
| Weight | 3.0Kg each |
Carton Contents
- 1x Blue 1 hi-fi unit - Black
- 1 x PG2 turntable - Black
- 1 pair PS32 loudspeakers - Black
- All connecting cables supplied.
